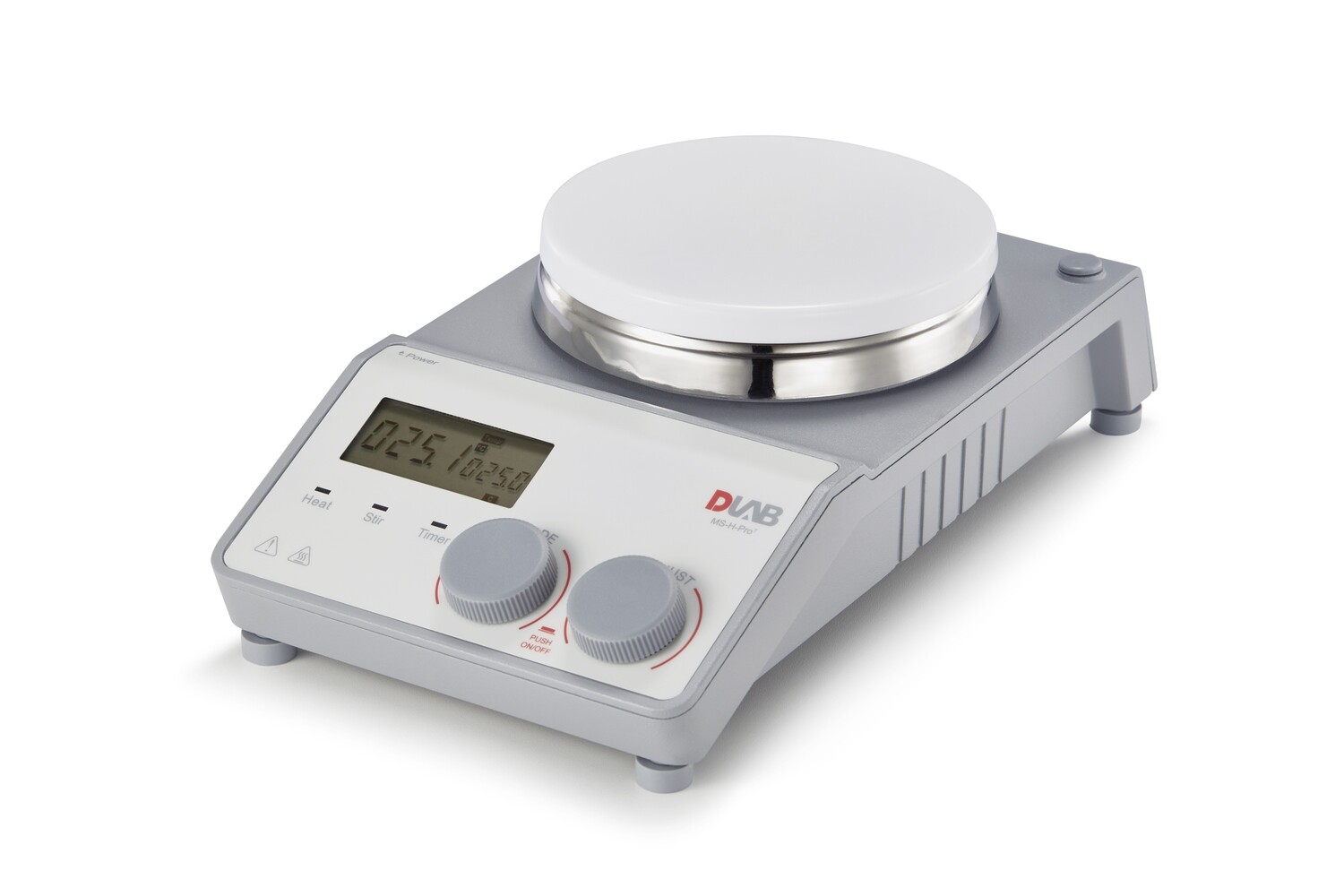

5" LCD Round Hotplate Magnetic Stirrer with Timer, Includes Support Clamp and Temperature Sensor
SKU 8030201110
$477.89
NEW
In stock: 6 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
5" LCD Round Hotplate Magnetic Stirrer with Timer, Includes Support Clamp and Temperature Sensor
Product Details
Weight: 10.00 lbs
• Brushless DC motor is maintenance free and explosion-proof
• Digital temperature control with max. temperature at 340°C
• Digital speed control with max. speed up to 1500rpm
• Max. stirring quantity of H2O at 20L
• Safety circuits provide overheating protection
• The “HOT” warning will flash if the plate temperature is above 50°C even when the hotplate is turned off
• Wide range timer function from 1min to 99h59min(MS-H-ProT only)
• High-resolution LCD display shows actual temperatures and speed (MS-H-ProT displays the time also)
• External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C
• Stainless steel work plate with ceramic coating provides good chemical-resistant performance
• Remote function provides PC control and data transmission
| Specifications | MS-H-PROT |
| Work plate dimension | φ135mm(5 inch) |
| Work plate material | stainless steel cover with ceramic |
| Motor type | Brushless DC motor |
| Motor rating input | 18W |
| Motor rating output | 10W |
| Power | 550W |
| Heating output | 500W |
| Voltage | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity[H2O] | 20L |
| Max. magnetic bar[length] | 80mm |
| Speed range | 100-1500rpm resolution±1rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room temp.-340°C, increment 1°C |
| Temperature control accuracy | ±1°C(<100°C) ±1%(>100°C) |
| Over temperature protection | 420°C |
| Temperature display accuracy | ±0.1°C |
| External temperature sensor | PT1000 (accuracy ±0.2) |
| "Hot" warning | 50°C |
| Timer function | 1min to 99h 59min |
| Data connector | RS232 |
| Protection class | IP42 |
| Dimension[WxDxH] | 160×280×85mm |
| Weight | 2.8kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
