ATFAS Automatic Integrated Gene Detection System, 1-Channel
SKU PetReady S
$49,900.00
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

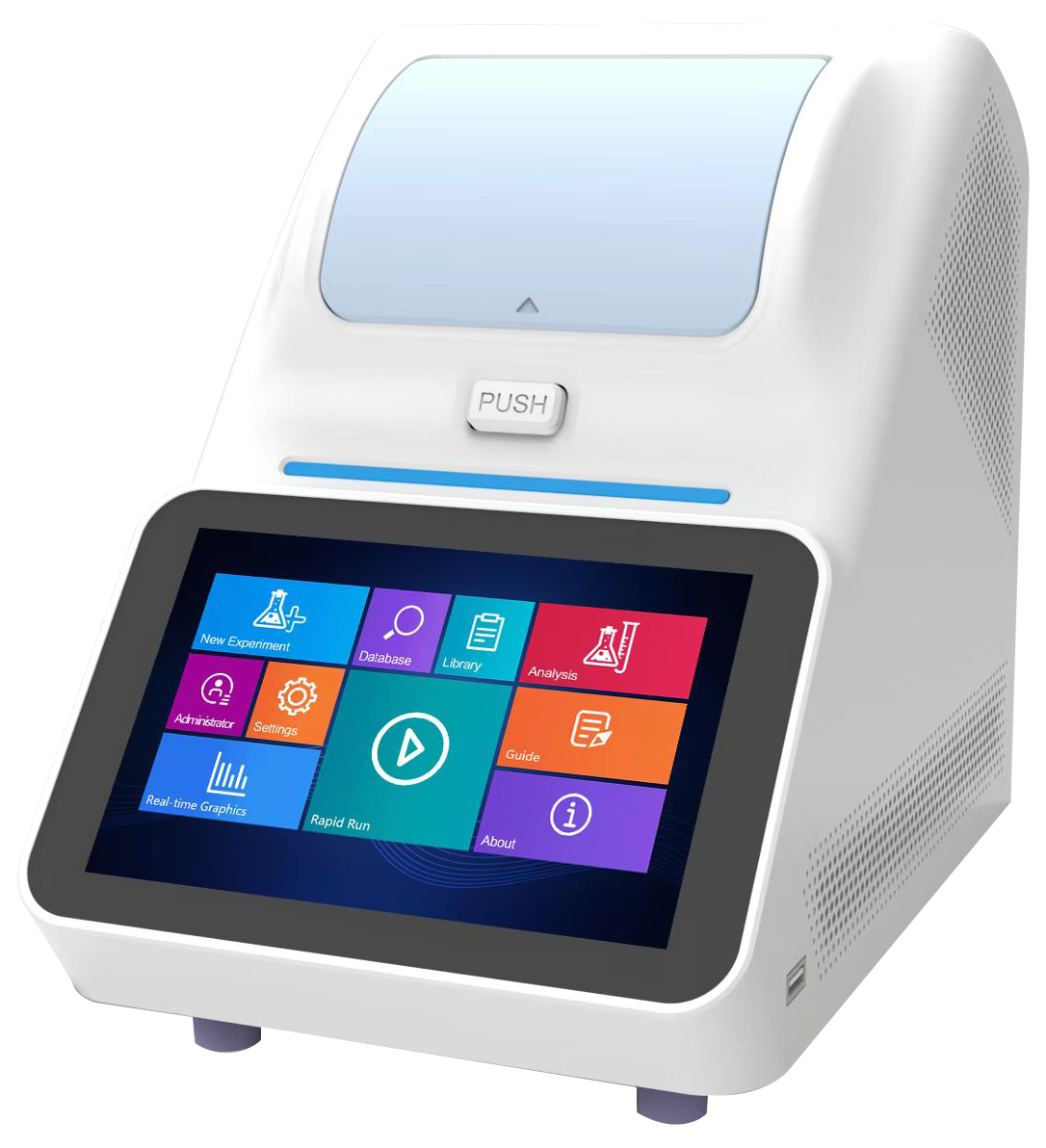

ATFAS Automatic Integrated Gene Detection System, 1-Channel
Product Details
ATFAS Automatic Integrated Gene Detection System is the fully integrated system for fast molecular diagnostics, which combines the nucleic acids extraction and realtime PCR amplification, by using the microfluidic cartridge preassembled kit to realize the fully integrated gene data analysis for the samples. It can be widely used for many kinds of gene detection, such as the clinical diagnostic market, food safety, agriculture, army and public security.
As the new generation gene detection system, AIGS realizes the fully integrated detection from sampling into the report. It is portable and can run each sample at any time and automatically transfer the data as your wish. It is a close system with no contamination and can be easily operated by the user. No need extra nucleic acid purification machine or PCR lab, by using the preassembled kits, AIGS can run as a system without the complicated operation.
Application
Female health, respiratory diseases, digestive diseases, veterinary diseases, genetic diseases, food safety.
Features
Fully-closed Microfluidic Kit, No Contamination: PetReady S cartridge with the unique design can control reagents flow in one direction. Owing to the microfluidic valves and sealed separate units, it avoids the contamination. So the system can be placed under the ordinary lab environment.
Real-time Fluorescent PCRTechnology, High Sensitivity: It combines the specificity and sensitivity of PCR detection technology, which shortens the window period of disease detection, and all the extracted nucleic acids from the sample enter the reaction system, which greatly improves the sensitivity High sensitivity and accurate result---Using the high sensitive Hamamazu PMT detector, Microfluidic designed cartridge.
From sample to report as less as in 1 hour: The whole process, including the extraction, purification, amplification and detection of sample, will be done in about one hour, which shortens the period of detection.
Portability of a single channel: Single channel, small footprint, compact and portable.
Internet+ data transfer---Connectors: Wifi, USB, LAN.
| Model/Order No. | PetReady S |
| Excitation Light source | LED |
| Detector | PMT photomutiplier tube |
| Block maxramping rate | ≥4℃/s |
| Block temperature range | 40℃-99.9℃ |
| Block temperature fluctuation | ≤0.3℃ |
| Temperature display accuracy | 0.1℃ |
| Sample linearity | Ir| ≥0.980 |
| Detection range | 10~10⁹copies/ml |
| Dyes | F1:FAM,SYBER Green l |
| F2:HEX,VIC | |
| F3:TEX RED,ROX | |
| F4:Cy5 | |
| Fluorescence detection time | ≤5s |
| Display | 7-inch color touch screen |
| Power supply | AC100-240V,50/60Hz,105W |
| Data connector | USB,WiFi,Network cable |
| Size | Length 285mm*Width 190mm*Height 265mm |
