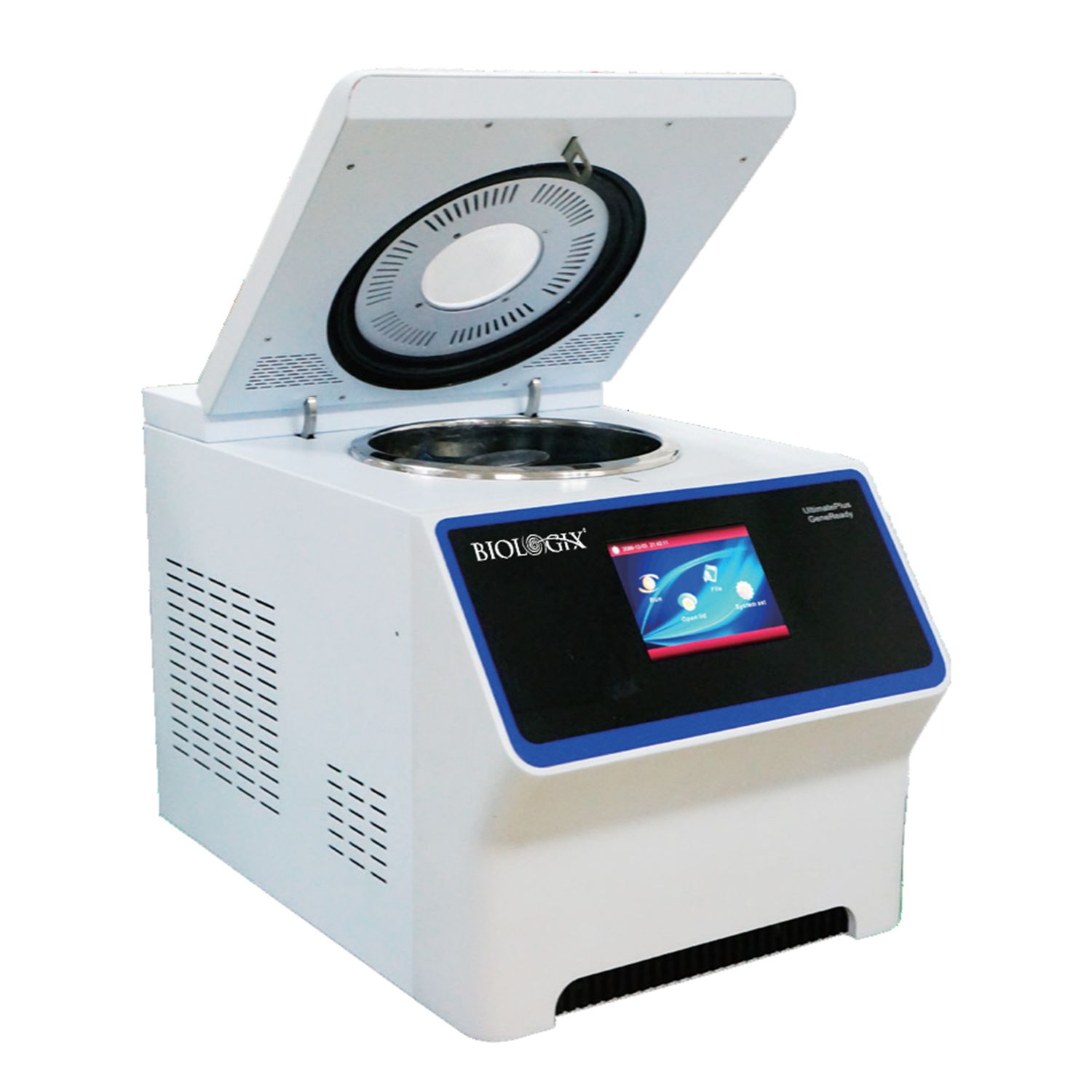

Biological Sample Preparation System is an open, fast, efficient, high-throughput biological sample preparation system that combines functions of high-temperature inactivation, low-temperature crushing, and centrifuging. The new high-temperature inactivation program can inactivate a variety of pathogens with one key, avoiding biohazards in the extraction process. The device can rapidly process 24 samples at the same time; by matching different kits, it treats samples with cell crushing from different sources (including clinical samples, soil, plant & animal tissues/organs, bacteria, yeast, fungi, spores, paleontological specimens, etc.), quickly releasing their original DNA, RNA and protein for the subsequent extraction and purification.
Advantages
1. Reduce the risk ofinfection: One-key temperature inactivation to eliminate bio-safety risks of pathogens; Self-disinfection to prevent cross-contamination; setting up procedures according to relevant standards.
2. Keep the sample activity: In the low-temperature mode, samples can be mixed evenly at low temperature, and the decrease of biological activity of samples can be avoided effectively.
3. Suitable for more samples: In the heat-up mode, the device can be used for sample incubation, etc. And the 4D crushing technology with a continuous operation function (up to 99 minutes), improves nucleic acid or protein yields. Low-speed ultra-long time continuous operation function, is particularly suitable for genome preparation.
4. Improve the operating experience: 5.7-inch color touch screen, simple and clear. The program setup is simple and convenient, and can run continuously and automatically. The cover with the window-through design, helps to observe the internal operation of the device with a large volume sample processing. Centrifugal function, without liquid nitrogen and other hazardous materials for an auxiliary processing. Electromagnetic lock protection and alarm function bring safety and easy maintenance. Brushless variable-frequency motor, no carbon particles, no need for a carbon brush replacing.
Ordering Information
Model |
01-SPS1401 |
01-SPS1301 |
01-SPS1201 |
01-SPS1101 |
01-SPS1001 |
Sample capacity |
24×2ml |
24x2ml, 12x5ml,4x15ml |
24x2ml |
24x2ml, 12x5ml,4x15ml |
24x2ml, 12x5ml,4x15ml |
High-temperature inactivation function |
Yes |
No |
No |
||
Crushing speed of high-temperature inactivation |
2.00-2.50m/s, 0.05m/s setting adjustable |
/ |
/ |
||
Temp.control range of |
37~95℃ |
/ |
/ |
||
Low-temperature crushing function |
Yes |
Yes |
No |
||
Low-temperature crushing speed |
2.00-2.50m/s, 0.05m/s setting adjustable |
2.00-2.50m/s, 0.05m/s setting adjustable |
/ |
||
Temp.control range of high-temperature grinding |
0~37℃ |
0~37℃ |
/ |
||
Centrifuging function |
Yes |
No |
Yes |
No |
No |
Centrifuging speed |
Max.6000rpm |
/ |
Max.6000rpm |
/ |
/ |
Temp.control range of centrifuging |
0~37℃ |
/ |
0~37℃ |
/ |
/ |
Noise level |
≤54db |
≤54db |
≤56db |
||
Single max.time |
99min59s |
99min59s |
30min |
||
Program quantity |
Max.99 |
||||
Cycle quantity |
Max.99 |
||||
Display screen |
5.7'touch screen |
||||
Lid lock protection function |
Yes |
||||
Alarm function |
Intelligent fault diagnosis &alarm function |
||||
Power supply |
AC 200~240V 50/60Hz |
||||
Dimension (L*W*H)mm |
500*370*410 |
500*370*410 |
380*280*330 |
||
Net weight |
33Kg |
30Kg |
32Kg |
30Kg |
17Kg |
