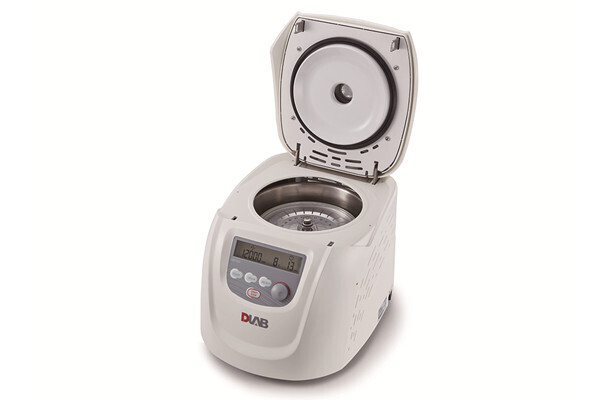

DLAB hematocrit centrifuge with AC24P hematocrit rotor is used for determination of volume fractions of erythrocytes in blood for diagnostic purposes and doping tests. Also it is used for the photometric determination of bilirubin content in neonate blood samples. Hematocrit centrifuge with A24-2P tube rotor, can be used for extraction of DNA and RNA.
• Speed range of 200-14000rpm, max. RCF 18620×g
• Precise control of speed and time separately
• Easy operation with intuitive menu and easy-to-read display
• Maintenance-free brushless DC motors
• Pulse operation for quick spins
• Rotor capacity: Hematocrit rotor (included)

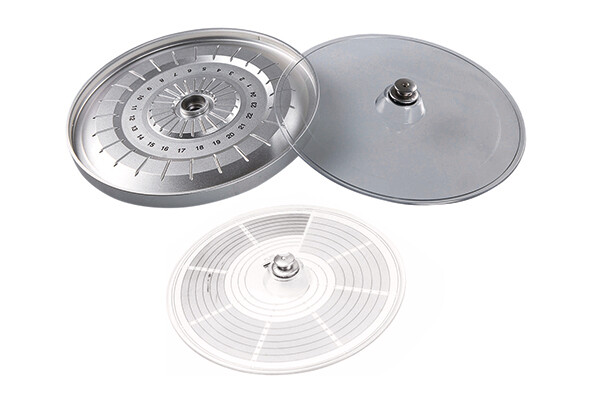

• Hematocrit rotor: 24 capillary max. speed:12000rpm
Specifications | DM1424 |
Speed Range | 200-14000rpm, increment: 10rpm |
Max. RCF | 18620×g |
Speed Accuracy | ±20 rpm |
Rotor Capacity | 2 type |
Run Time | 30sec-99min/Continuous |
Motor | Brushless DC moto |
Display | LCD |
Safety Devices | Door interlock, overspeed detector; over-temperature detector, automatic internal diagnosis, automatic rotor identification |
Power | Single-phase, 220V-240V,50Hz/60Hz, 5A;110V-120V,50Hz/60Hz, 5A 500W |
Acceleration /Braking time [Sec] |
30s↑30s↓ |
Dimension [D×W×H] | 280×364×274mm |
Weight | 10kg |
Certification | CE cTÜVus FCC MCA |
Advanced Features | Speed/RCF switch; Short-time run function; sound-alert function |
