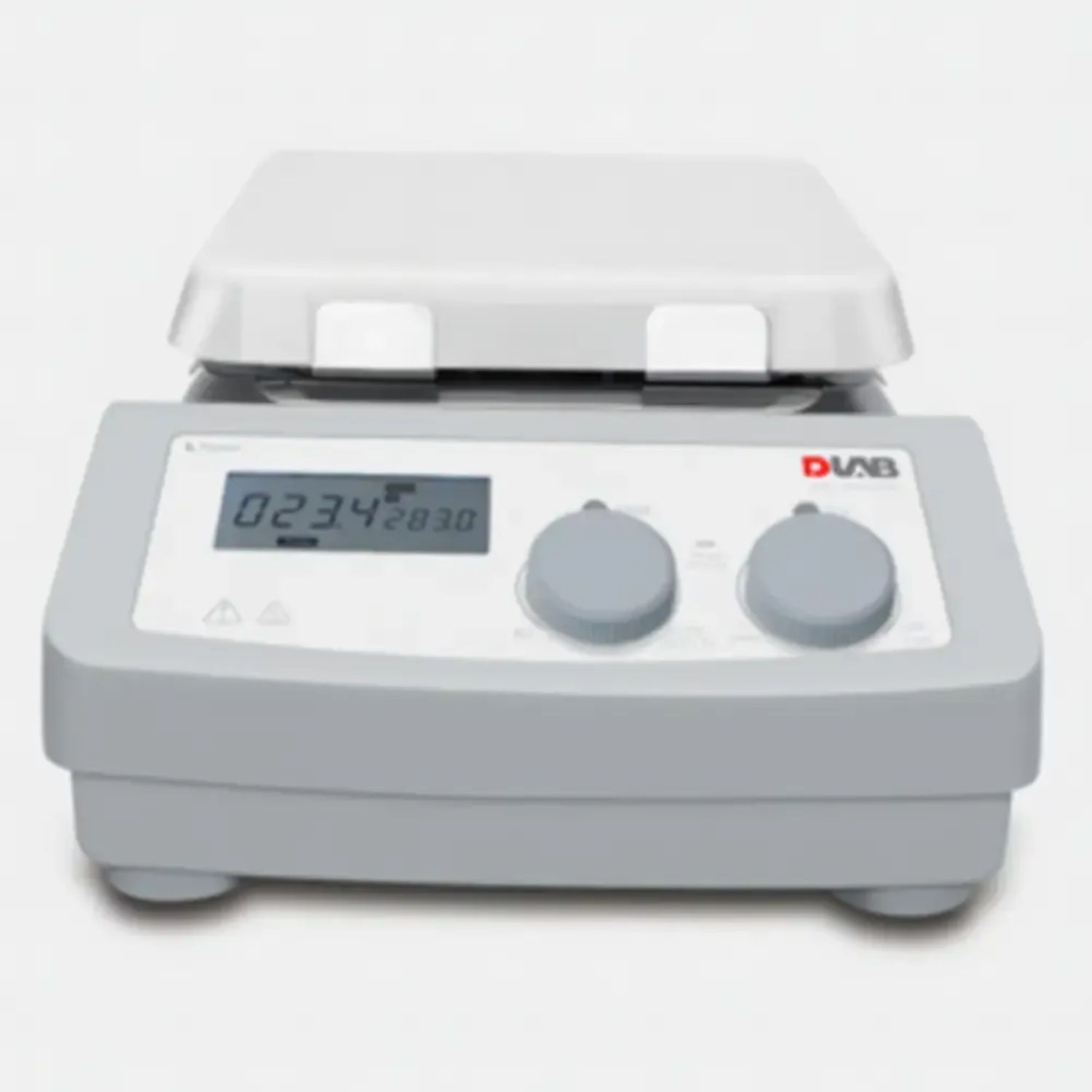

MS7-H550-Pro LCD Digital Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate, 1/Case
SKU 8030122111
$598.99
In stock: 2 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
MS7-H550-Pro LCD Digital Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate, 1/Case
Product Details
Feature
- LCD displays actual temperature & speed
- Built-in PID controller ensures safe heating of the medium with overheating protection
- Maximum heating plate temperature up to 550℃
- Glass ceramic work plate is resistant to corrosion and is easy to clean
- External temperature control is possible by connecting temperature sensor(PT1000) with an accuracy of ±0. 2℃
- Digital speed control with maximum range of 1500rpm
- Outstanding brushless DC motor offers more stirring power
- Two knobs enable easy adjustment of speed and temperature
- “HOT” warning flashes when work plate temperature is above 50℃ even when hotplate is turned off
- Remote function provides PC control and data transmission
| Specifications | MS7-H550-Pro | ||
| Work plate Dimension [W x D] | 184x184mm ( 7 inch ) | ||
| Work plate material | Glass ceramic | ||
| Motor type | Brushless DC motor | ||
| Stirring positions | 1 | ||
| Max. stirring quantity, [H2O] | 20L | ||
| Max. magnetic bar[length] | 80mm | ||
| Speed range | 100-1500rpm，resolution±1rpm | ||
| Speed display | LCD | ||
| Temperature display | LCD | ||
| Heating temperature range | Room Temp.-550℃, increment 1℃ |
||
| Temperature control accuracy | ±1℃(<100℃) ±1%(>100℃) | ||
| Overheating protection | 580℃ | ||
| Temperature display accuracy | ±0.1℃ | ||
| External temperature sensor | PT1000(accuracy ±0.2℃) | ||
| "Hot" warning | 50℃ | ||
| Data connector | RS232 | ||
| Protection class | IP21 | ||
| Motor rating input | 18W | ||
| Motor rating output | 10W | ||
| Power | 1050W | ||
| Heating output | 1000W | ||
| Voltage,Frequency | 100-120/200-240V，50/60Hz | ||
| Dimension [WxDxH] | 215x360x112mm | ||
| Weight | 5.3kg | ||
| Timer function | - | ||
| Permissible ambient temperature and humidity |
5-40℃,80%RH |
