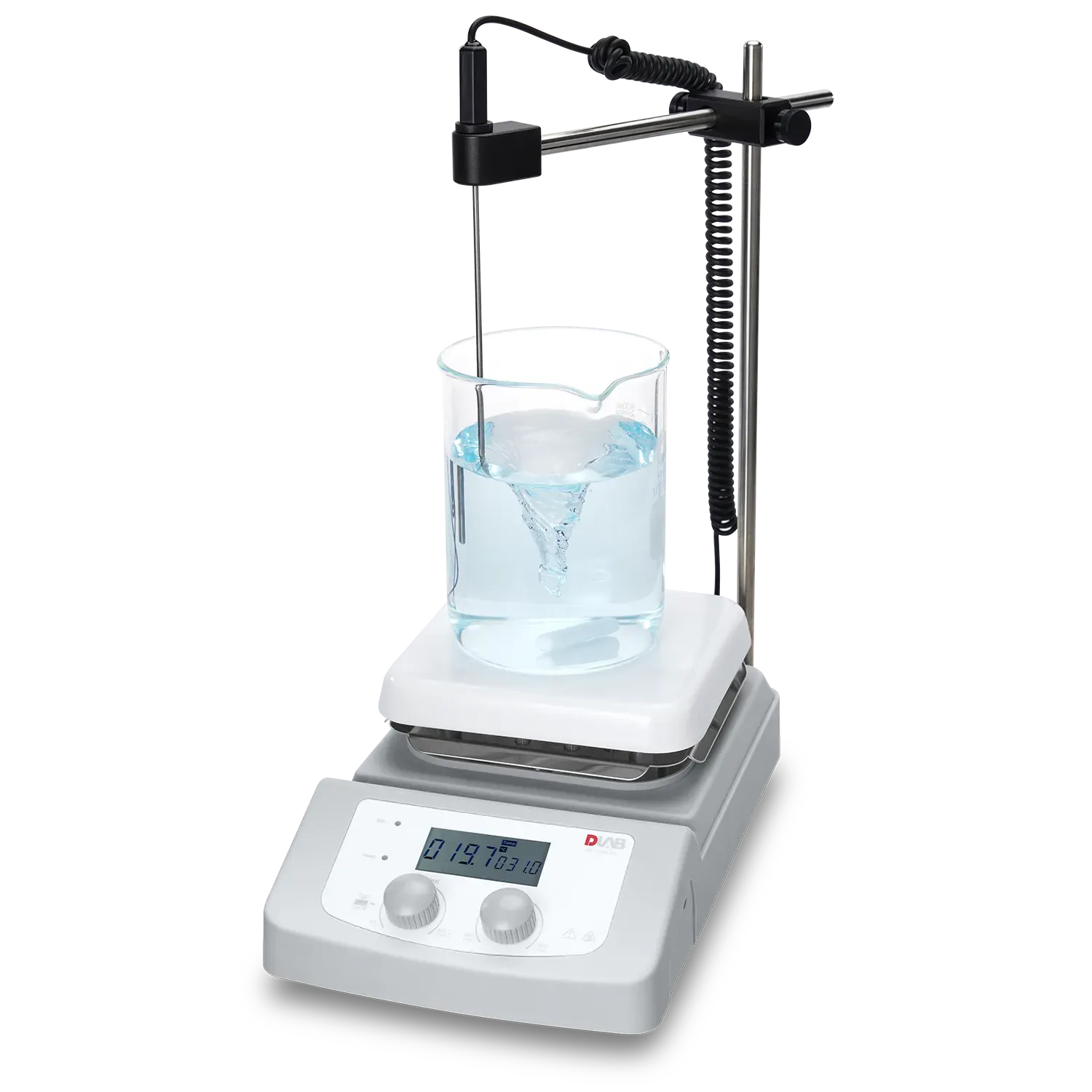

LCD Digital Magnetic Hotplate Stirrer
SKU 8030268115
$265.00
In stock: 9 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
LCD Digital Magnetic Hotplate Stirrer
Product Details
LCD Digital Magnetic Hotplate Stirrer combines heating and stirring functions for laboratory use. It reaches up to 380°C with fast heat transfer via aluminum ceramic coated plate, equipped with brushless DC motor and PT1000 external temperature sensor support.
Highlights:
- Max heating temperature up to 380°C
- High-resolution LCD shows real-time temperature and speed
- Maintenance-free brushless DC motor
- Aluminum ceramic coated work plate for rapid heat transfer
- Supports external temperature control via PT1000 sensor
- Digital speed control, max speed 1500rpm
- Max stirring volume of water: 5L
Technical Specifications:
| Item | Parameter |
|---|---|
| Cat.No. | 8030268115 |
| Work plate material | Aluminum cover with ceramic coating |
| Work plate Dimension | 140×140mm |
| Speed range | 200–1500rpm |
| Speed display | LCD |
| Heating temperature range | Room Temp.–380°C |
| Temperature display | LCD |
| Temperature control accuracy | ±1°C(<100°C) ±1%(>100°C) |
| Temperature display accuracy | ±0.1°C |
| External temperature sensor | PT1000 (accuracy±0.2°C) |
| Overheating temperature protection | 420°C |
| Motor type | Brushless DC motor |
| Stirring positions | 1 |
| Max. magnetic bar length | 50mm |
| Protection class | IP21 |
| Motor rating output | 3W |
| Heating power | 700W |
| Power | 800W |
| Voltage,Frequency | 100-120V/200-240V, 50/60Hz |
| Dimension [W×D×H] | 180×320×108mm |
| Weight | 2.2kg |
| Permissible ambient temperature | 5–40℃ |
| Permissible ambient humidity | 80% RH |
| Max. stirring quantity [H₂O] | 5L |
