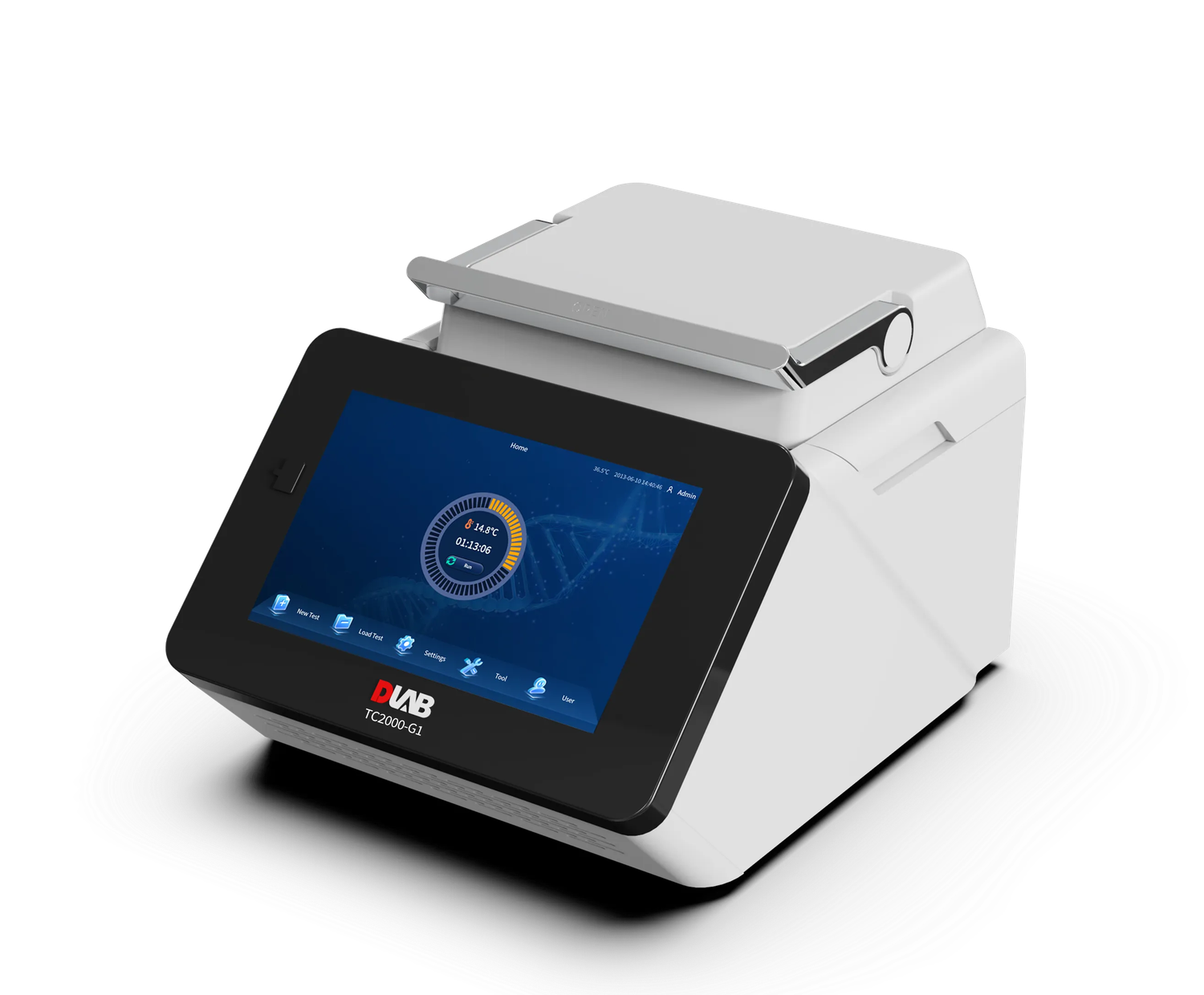

Thermal Cycler Gradient
SKU 5034102400
$0.00
In stock: 1 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Thermal Cycler Gradient
Product Details
- 10.1-inch large screen new UI interface, divided into single-channel / dual-channel / three-channel, to meet different experimental requirements
- With advanced gradient temperature control technology, high-performance and long-lasting Peltier refrigeration and heating, which can achieve precise temperature control in zones.
- Multi-channel module design, can run several different PCR gradient programs at the same time, to achieve multi-purpose machine
- Self-adaptive pressure lever hot cap, close and tighten the cap in one step, can be adapted to different heights of test tubes
- Supports up to 199 cycles to perform the next operation, and runs a countdown disc to visually display the remaining time
- Edge temperature compensation technology for good temperature uniformity and gradient settings for easy optimization of experimental conditions
- Real-time display of the running status of the programmed, you can set the security account and password according to customer demand
- Automatic power failure protection, automatically execute unfinished cycles after power restoration to ensure the safe operation of the whole amplification process.
- Hot lid temperature and hot lid operating mode can be set to meet different experimental application requirements
- USB interface, support for U-disk storage/reading PCR data, support for U-disk software update, can be customed to meet the function of multiple file storage, support for Touch down PCR and Long PCR experiments
- Compatible with common 0.2mL PCR tubes, PCR-8Strips and 96-well PCR plates (no skirt, half skirt)
| Specifications | TC2000-G1 |
| Sample Capacity | 96×0.2mL PCR tube
12×PCR-8strips 1×0.2mL96-well PCR plate |
| Module | 1×96 |
| Sample module
temperature control range[℃] |
0-105 |
| Hot lid temperature control range[℃] | 30-115 |
| Temperature display accuracy [℃] | 0.1 |
| Temperature control accuracy [℃] | ±0.1 |
| Temperature uniformity (at 55°℃)[℃] | ±0.2 |
| Maximum rate of temperature change | 5℃/Sec |
| Gradient Temp Setting Range[℃] | 30-105 |
| Gradient span [℃] | 1-42℃,enter 0 to
turn off the gradient |
| Temperature Control Method | Block/Tube |
| Material of the carrier module | Aluminum |
| Display | 10.1inches LCD1280×800 |
| Input method | Touch panel |
| Power off protect | Yes |
| Skip to the next step | Yes |
| Communication Interface | USB,WIFI |
| Number of program storage | 20000+(USB FLASH) |
| User Defined File System | Up to 30 steps and 199
cycles in asingle program |
| Power Supply | 100-240V,50/60HZ,600W |
| Dimensions [WxDxH] | 310×422×264mm |
| Weight | 11Kg |
| Permissible Ambient
Temperature and Humidity |
5-40℃,80%RH |
