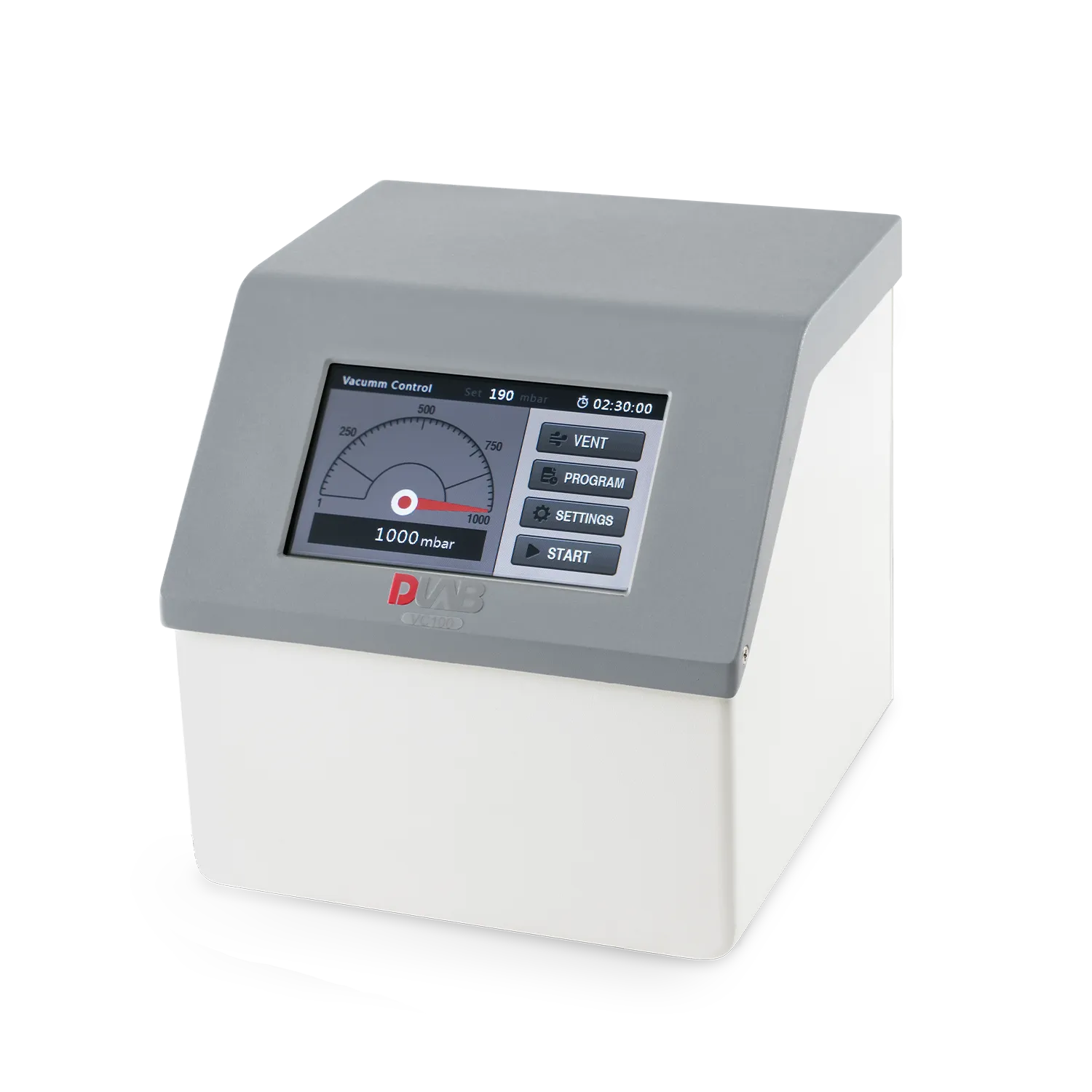

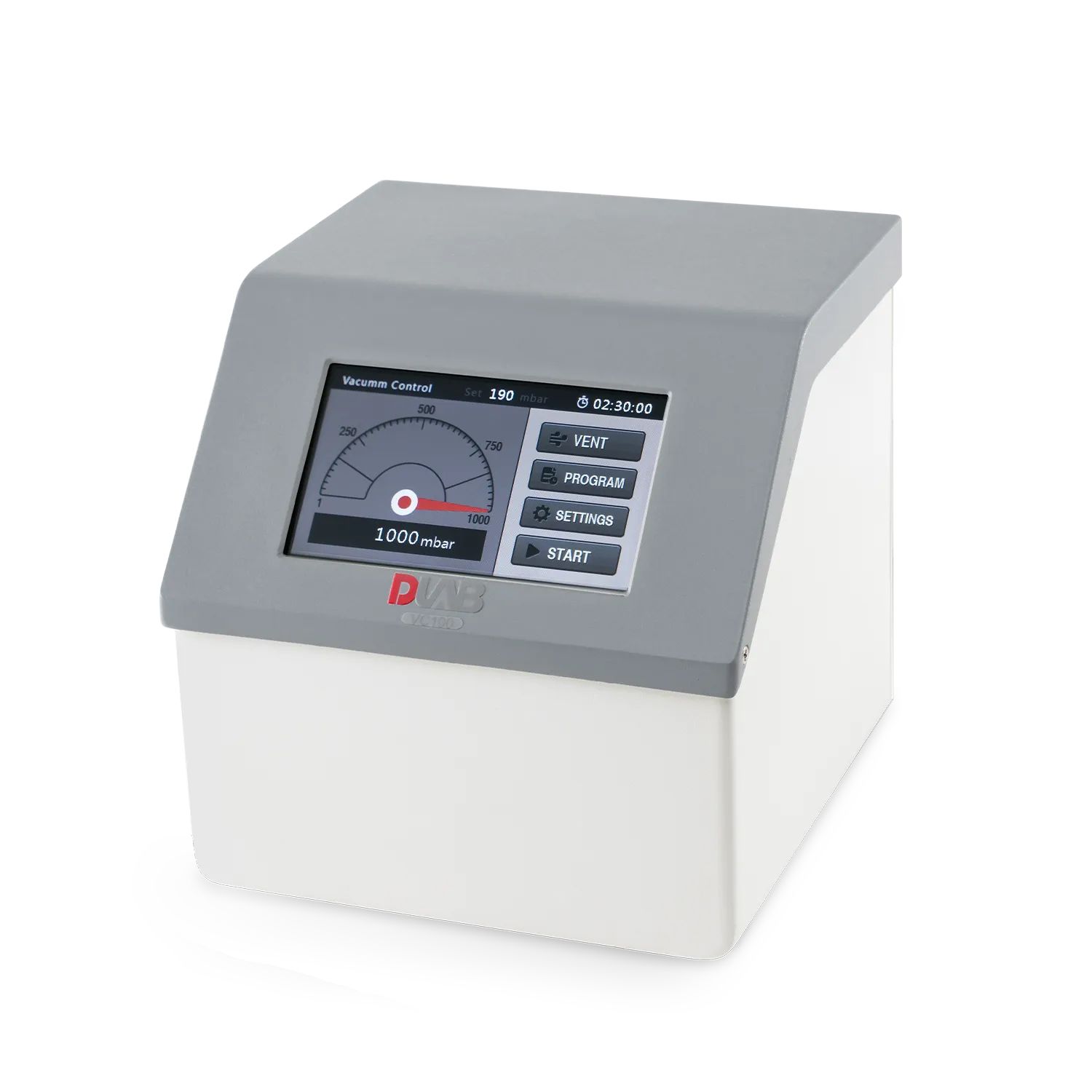

VC100 Vacuum Controller
Product Details
- Wide range of measurement and control, 1-1,000mbar
- Two control modes available Single-point control and programmed control
- Stores up to 5 programs, each containing up to 5 steps of programming control
- Large TFT touch screen display control provides easy operation
- All parts in contact with vapor or liquid are made of PTFE, ceramics or other high-performance materials which effectively resists corrosion caused by organic solvents, water, acid and alkali
- Built-in vent valve can feed inert gas into system equipment
- One-click decompression allows easy installation and dismantling of vacuum system
- Can be connected with pump power control for temporary shutdown of pump power
- supply after reaching stable degree of vacuum for energy conservation and environmental protection.
- Can also be operated in the normally open status of pump
- Reliable and functional design to fulfill essential needs of precise vacuum regulation
| Specifications | VC100 |
| Vacuum setting range | 1-1000mbar |
| Vacuum measurement range | 1-1000mbar |
| Control mode | Single-point control mode, Programmed control mode |
| Control program | Can store up to 5programs,each containing 5-step control (capable to set the degree of vacuum and time) |
| Setting method | Touch screen setting |
| Display | 5"TFT |
| Sensor overload pressure | 1,500mbar |
| Connector diameter | 8mm |
| Materials in contact with vapor | PTFE,PP,silicone and ceramics |
| Power | 600W |
| Compatible conditions with vacuum pump |
Power of50Hz vacuum pump≤400W Power of 60Hz vacuum pump≤500W |
| Overall dimensionsWxDxH | 189×207x193mm |
| Weight | 4.0kg |
| Voltage,Frequency | 110240V,50Hz/60Hz |
| Operating environment | 10℃~40℃≤80%RH |
