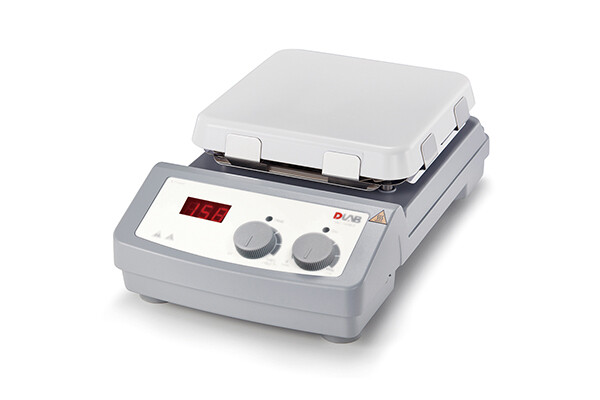

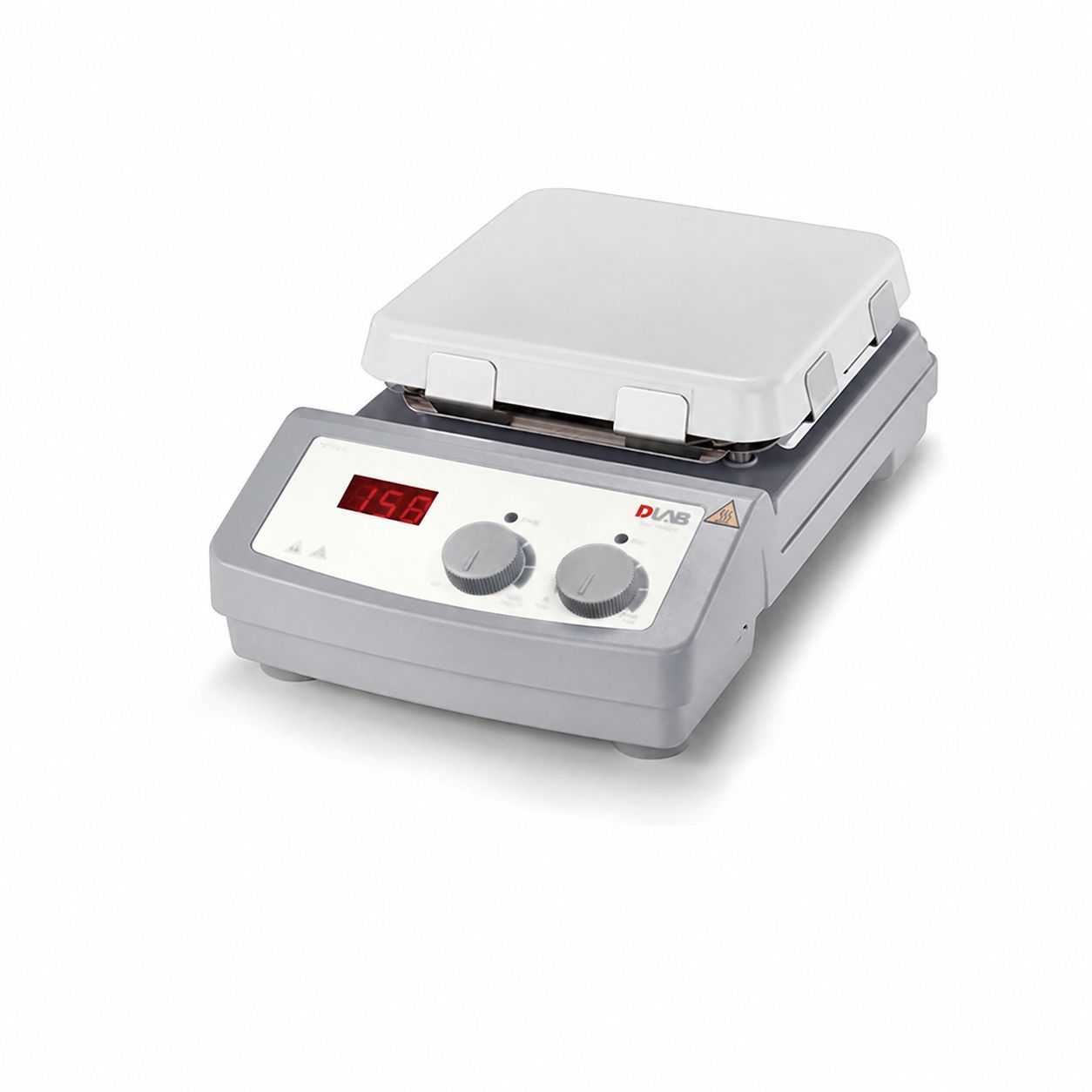

7" LED Square Hotplate Magnetic Stirrer, Includes Support Clamp and Temperature Sensor
SKU 8030122211
$497.22
NEW
In stock: 28 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
7" LED Square Hotplate Magnetic Stirrer, Includes Support Clamp and Temperature Sensor
Product Details
- LED display for precise monitoring of temperature
- A wide speed range of 0 to 1500rpm
- Max. Heating plate temperature 550°C
- External temperature control is possible by connecting the temperature sensor(PT1000) with accuracy at ±0.2°C
- The “HOT” warning will flash if the work plate temperature is above 50°C
| Specifications | MS7-H550-S | |
| Work plate Dimension [W x D] | 184x184mm (7 inch) | |
| Work plate material | Glass ceramic | |
| Motor type | Shaded pole motor | |
| Motor rating input | 15W | |
| Motor rating output | 1.5W | |
| Power | 1030W | |
| Heating output | 1000W | |
| Voltage | 100-120/200-240V 50/60Hz | |
| Stirring positions | 1 | |
| Max. stirring quantity, [H2O] | 10L | |
| Max. magnetic bar[length] | 80mm | |
| Speed range | 0-1500rpm | |
| Speed display | Scale | |
| Temperature display | LED | |
| Heating temperature range | Room temp.-550°C, increment 5°C | |
| Temperature control accuracy | ±10°C | |
| Overheating protection | 580°C | |
| Temperature display accuracy | ±1°C | |
| External temperature sensor | PT1000 (accuracy ±0.2) | |
| "Hot" warning | 50°C | |
| Protection class | IP21 | |
| Dimension [WxDxH] | 215x360x112mm | |
| Weight | 4.5kg | |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH | |
