LCD Digital Magnetic Hotplate Stirrer
SKU 8060221110
$426.00
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

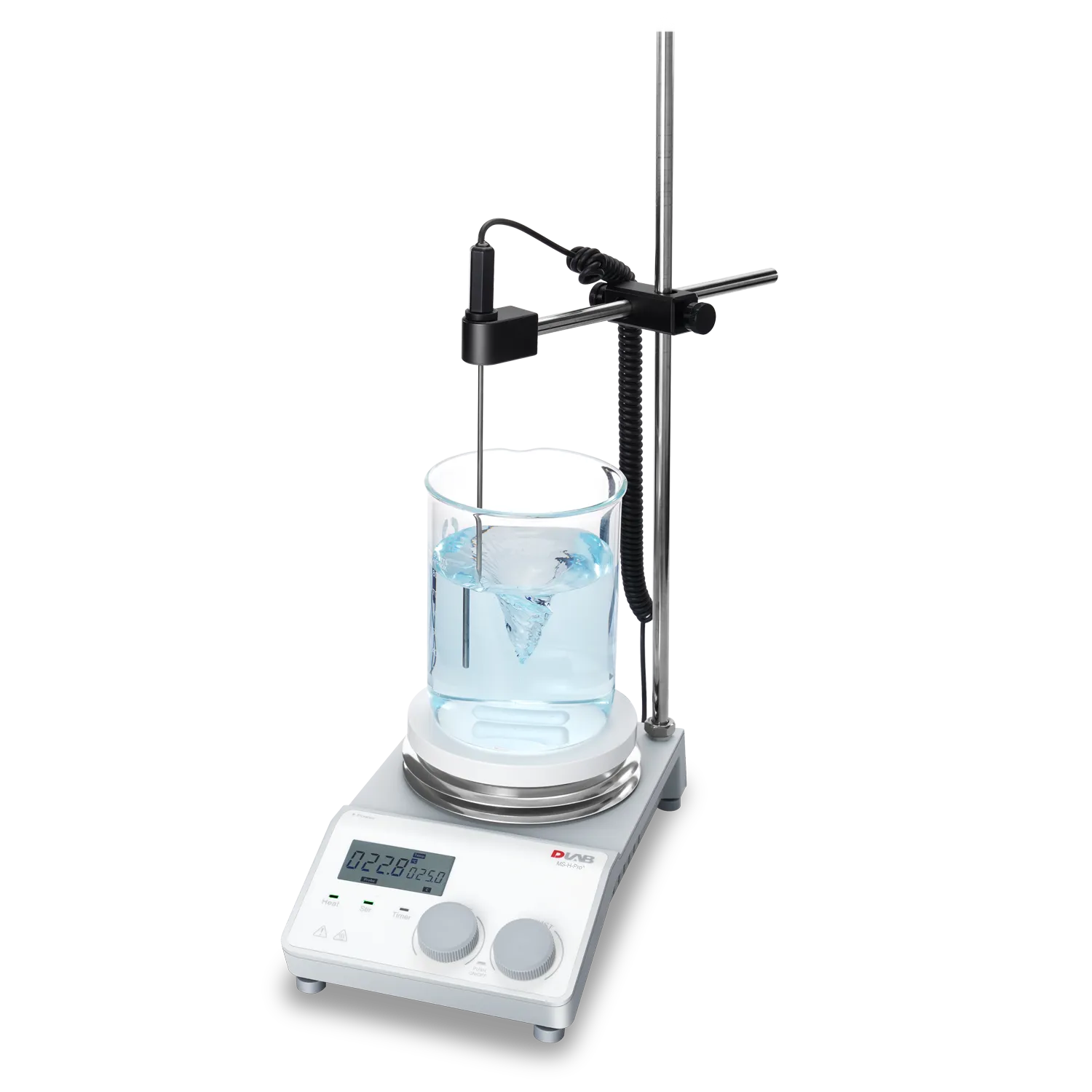

LCD Digital Magnetic Hotplate Stirrer
Product Details
Features
- Brushless DC motor is maintenance free and explosion-proof
- Digital temperature control up to 340°C
- Digital speed control up to 1500rpm
- Maximum stirring quantity of H2O is 20L
- Safety circuits provide overheating protection
- "HOT" warning flashes if plate temperature is above 50°C even when hotplate is turned off
- External temperature control is possible by connecting the temperature sensor(PT 1000)with accuracy at ±0.2°C
- Work plate with ceramic coating provides good chemical-resistant performance
- Remote function provides PC control and data transmission
- Wide variety of accessories available to choose
| Specifications | MS-H-ProA |
| Work plate Dimension [W×D] |
Ø135mm(5inch) |
| Work plate material | Aluminum cover with ceramic coating |
| Motor type | Brushless DC motor |
| Stirring positions | 1 |
| Max.stirring quantity, [H₂O] |
20L |
| Max.magnetic bar [length] |
80mm |
| Speed range | 100-1500rpm resolution±1rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range |
Room temp.-340℃, increment 1℃ |
| Heating liquid temperature control accuracy |
±1℃<100℃) ±1%(>100℃) |
| Overheating temperature protection |
420℃ |
| Temperature display accuracy |
±0.1℃ |
| External temperature sensor |
PT1000 (accuracy±0.2℃) |
| "Hot"warning | 50℃ |
| Data connector | RS232 |
| Protection class | IP21 |
| Timerfunction | 1min to 99h59min |
| Motor rating output | 10W |
| Power | 720W |
| Heating output | 600W |
| Voltage,Frequency | 100-120/200-240V, 50/60Hz |
| Dimension [WxDxH] | 280x160x100mm |
| Weight | 2.8kg |
| Permissible ambient temperature and humidity |
5-40℃,80%RH |
