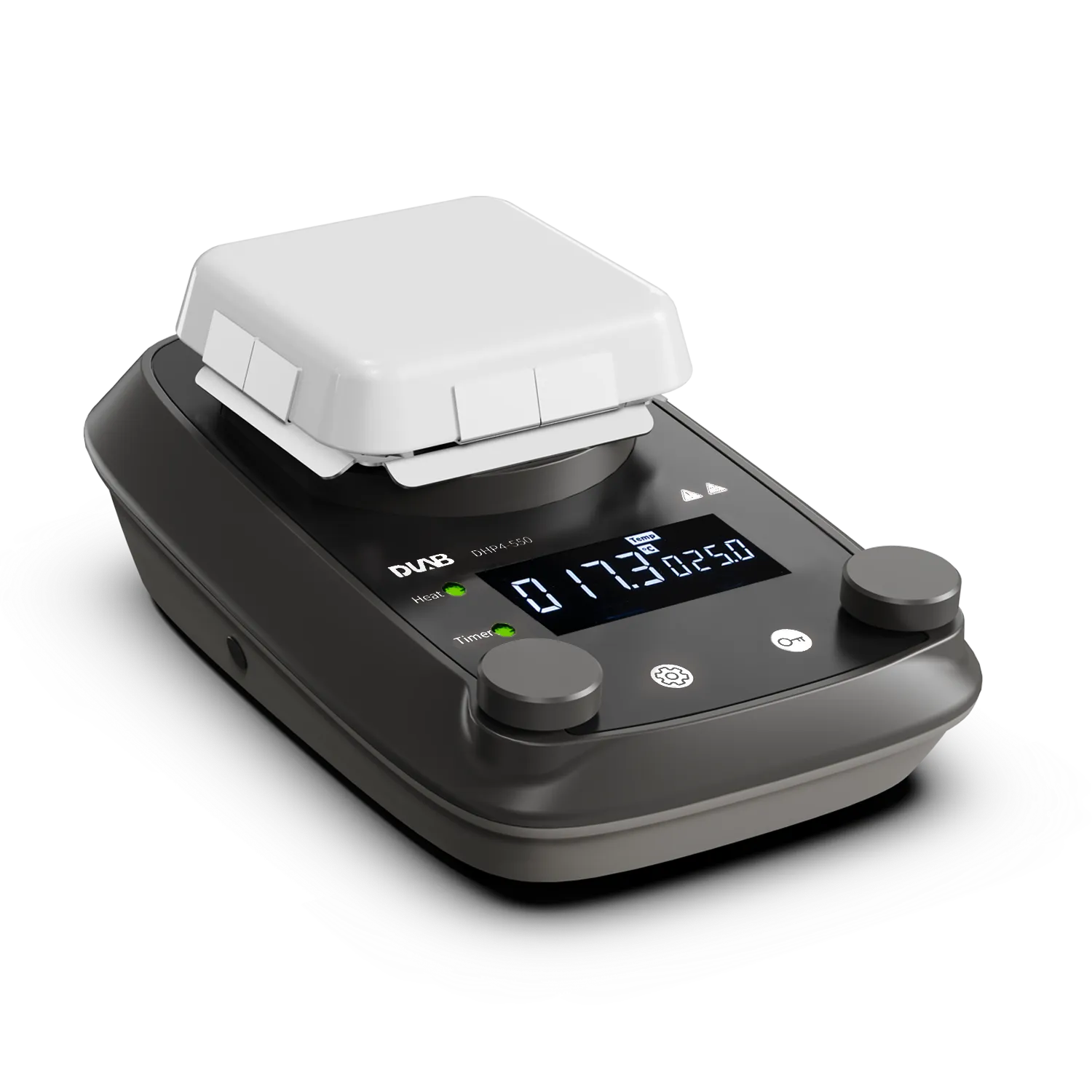

LCD Glass Ceramic Hotplate with Timer

LCD Glass Ceramic Hotplate with Timer

SKU 8121502211
$367.00
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Share this product with your friends
ShareSharePin it
LCD Glass Ceramic Hotplate with Timer
Product Details

Features

  • Ceramic discs are extremely corrosion-resistant, resistant to strong acids and alkalis, and high temperatures, making it easy to clean accidental drips of solvents, oils, or other contaminants.
  • The corrosion-resistant all-metal housing provides good heat dissipation and reliable fire protection.
  • High-efficiency infusion platform and waterproof edge design prevents liquid from entering the interior of the machine and corroding electronic components.
  • Selected high-temperature resistant strong magnetic magnet, strong stirring, suitable for viscous liquid stirring.
  • Heating modes are divided into: A rapid heating mode, B standard heating mode, C stable heating mode, to meet different customer needs.
  • Safety locks to prevent accidental changes in operating conditions.
  • Buzzer: When the machine malfunctions, or the timer function counts down to the end of the buzzer will emit a "drip drip drip" sound.
  • Residual heat warning function, when the disc temperature is higher than 50 ℃, turn off the heating, the screen will have a "HOT" flashing prompt, even if the power off, the display is still "HOT" flashing to remind the high temperature.
  • Two independent safety circuits are designed to continuously monitor the equipment. When overheating occurs, the sensor fails, the machine reports an error and stops heating, and when the line is short-circuited, the machine automatically cuts off the power supply to protect the operator's safety.
  • DC brushless motor, no spark, long life; low noise, maintenance-free, smooth running.
  • The LCD displays the set and real-time values of speed, time and temperature in an intuitive and clear manner.
  • Timing function, timing range 1min-99h59min, countdown to the end of the stop heating, will not stop stirring, so as not to heat damage to the sample.
  • Remote control function with PC connection.
  • Safety temperature can be set.
Specifications DHP4-550
Working plate size 100x100mm(4 inch)
Plate Material Glass Ceramic
Motor type
Stirring positions -
Maximumstirringvolume[H₂O]
Maximum stirrer size [length]
-
Speed range and step
Speed Display -
Temperature display LCD
Heating temperature range Room temp-550℃,
increment1℃
Temperature control
accuracy of heating liquid
±1℃(<100℃)±1%(>100℃)

overheating protection
580℃
Temperature display accuracy 0.1℃
External temperature sensor
PT1000(accuracy±0.2℃)
Waste heat warning function 50℃
Data connection RS232
Protection class IP21
Timer function 1min-99h59min
Motoroutput power
-
Power 430W
Heating output power 410W
Voltage,Frequency 100-120/200-240V,50/60Hz
Dimensions[LxWxH] 270x175x108mm
Weight 1.8kg
Permissible ambient
temperature and humidity
5-40℃,80%RH
Show More
